ERNiCrFe-13 Welding Wire Supplier for Alloy 690
ERNiCrFe-13 is designed primarily for joining and overlay welding of Alloy 690 (UNS N06690) and similar nickel-chromium-iron alloys.
With higher chromium content combined with molybdenum and niobium additions, ERNiCrFe-13 provides improved resistance to weld cracking and oxide-related defects compared with conventional Ni-Cr-Fe filler metals. It is commonly selected for applications where weld integrity and long-term corrosion resistance are required.
📧 You can request a quote by email support@ronsteel.com with your required specification, size and quantity.
ERNiCrFe-13
ERNiCrFe-13
ERNiCrFe-13
| Standard | Classification |
|---|---|
| AWS A5.14 | ERNiCrFe-13 |
| ASME SFA-5.14 | ERNiCrFe-13 |
| UNS | N06695 |
| ASME IX | F-No.43 |
| Element | C | Mn | Si | Cr | Ni+Co | Fe | Mo | Nb+Ta | Ti | Al | S | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Content (%) | ≤0.03 | ≤1.0 | ≤0.50 | 28.0–31.5 | 54.0–62.0 | Balance | 3.0–5.0 | 1.5–3.5 | ≤0.50 | ≤0.50 | ≤0.015 | ≤0.02 |
| Property | Value |
|---|---|
| Tensile Strength | ≥650 MPa (94,000 psi) |
| Elongation (4d) | ≥40% |
ERNiCrFe-13 is mainly used for welding nickel-chromium-iron alloys such as Alloy 690 (UNS N06690), including joining the alloy itself, welding to steel, and weld overlay applications.
Compared with general Ni-Cr filler metals, it provides a closer chemical match for high chromium nickel alloys.
One of the important advantages of ERNiCrFe-13 is its resistance to ductility-dip cracking (DDC).
During welding of high alloy nickel materials, cracking can occur in the temperature range where the weld metal loses ductility. The controlled addition of alloying elements helps improve weld reliability, especially in multi-pass welding and high restraint joints.
The combination of Cr, Mo, and Nb provides:
This makes ERNiCrFe-13 suitable for critical welding situations where weld quality is more important than simply matching tensile strength.
| Item | ERNiCrFe-13 | ERNiCrFe-7A |
|---|---|---|
| Typical Alloy Match | Alloy 690 | Alloy 600/690 |
| Chromium | Higher | High |
| Molybdenum | Added (~4%) | Normally not added |
| Niobium | Higher stabilization | Nb stabilized |
| Main Advantage | DDC resistance & weld integrity | General Ni-Cr-Fe welding |
| Typical Use | Alloy 690 welding, overlays | Alloy 600/690 joining |
ERNiCrFe-7A remains a popular choice for Alloy 600 and Alloy 690 welding, while ERNiCrFe-13 is selected when additional weld crack resistance and chemical matching are required.
Used for welding Alloy 690 components and nickel alloy joints where corrosion resistance and weld reliability are required.
Suitable for corrosion-resistant welding of nickel-chromium-iron alloy equipment.
Used for applying nickel alloy corrosion-resistant layers on steel substrates.
Applied in components exposed to elevated temperature oxidation and corrosion environment
We supply ERNiCrFe-13 welding wire in various forms for different welding processes, including TIG, MIG and custom requirements.
| Product Form | Available Options |
|---|---|
| TIG Filler Rod | ERNiCrFe-13 TIG Rod |

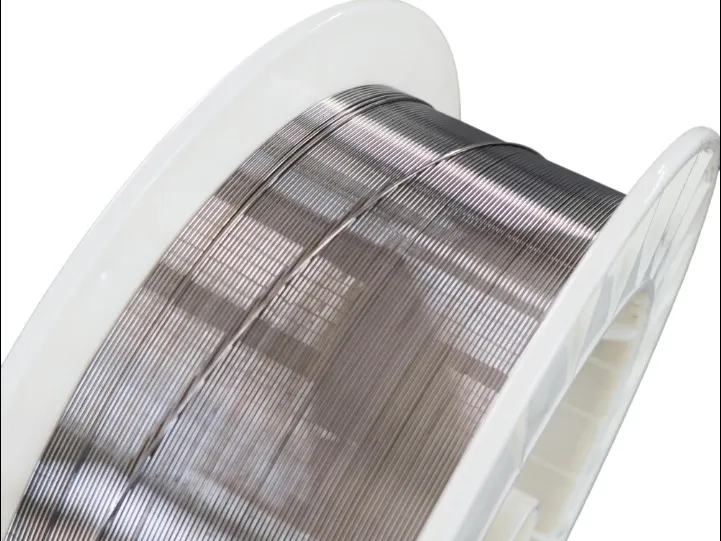

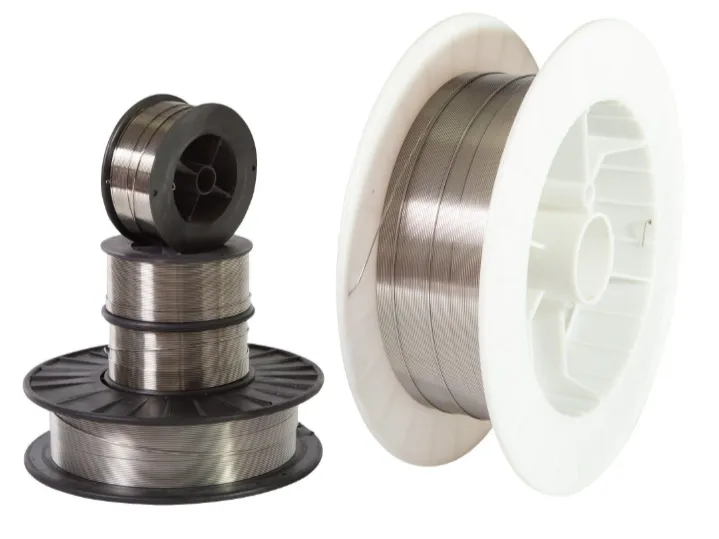

| MIG Welding Wire | ERNiCrFe-13 Spool Wire |
| Coil Wire | Custom coil wire available |
| Custom Supply | Diameter, packaging and wire form can be customized |
| Welding Wire Type | Common Diameter Options |
|---|---|
| TIG Rod | 1.0mm, 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm |
| MIG Wire | 0.8mm, 1.0mm, 1.2mm, 1.6mm (depending on spool requirements) |
Please contact us for available diameters and customized packaging options.
For ERNiCrFe-13 welding wire, consistent chemistry and surface quality are critical because small variations can influence weld performance.
Our supply advantages include:
Ø Stable Alloy Composition — Controlled Ni, Cr, Mo, and Nb levels ensure reliable welding performance.
Ø Smooth Wire Surface — Suitable for automatic feeding processes including MIG welding.
Ø Multiple Supply Forms — Available for TIG, MIG, SAW and other welding processes.
Ø Custom Production — Diameter, packing method, and wire form can be customized according to project requirements.
1. What is ERNiCrFe-13 used for?
ERNiCrFe-13 is mainly used for welding Alloy 690 (UNS N06690), as well as welding these alloys to steel and nickel-based materials.
2. What is the difference between ERNiCrFe-13 and ERNiCrFe-7A?
ERNiCrFe-13 contains additional molybdenum and higher niobium additions, providing improved weld crack resistance and better suitability for demanding Alloy 690 welding applications.
3. Is ERNiCrFe-13 suitable for TIG welding?
Yes. ERNiCrFe-13 is commonly supplied as TIG filler rod and can also be used for GMAW, SAW and PAW processes.
4. What base metals can ERNiCrFe-13 weld?
It is commonly used for nickel-chromium-iron alloys such as Alloy 690, as well as joining nickel alloys with steel or applying nickel alloy overlays on steel substrates.
5. Is ERNiCrFe-13 the same as Alloy 52MSS?
Yes. ERNiCrFe-13 is commonly associated with Alloy 52MSS filler metal.
Please provide the following details for quotation:
We will provide a suitable quotation based on your requirements.
