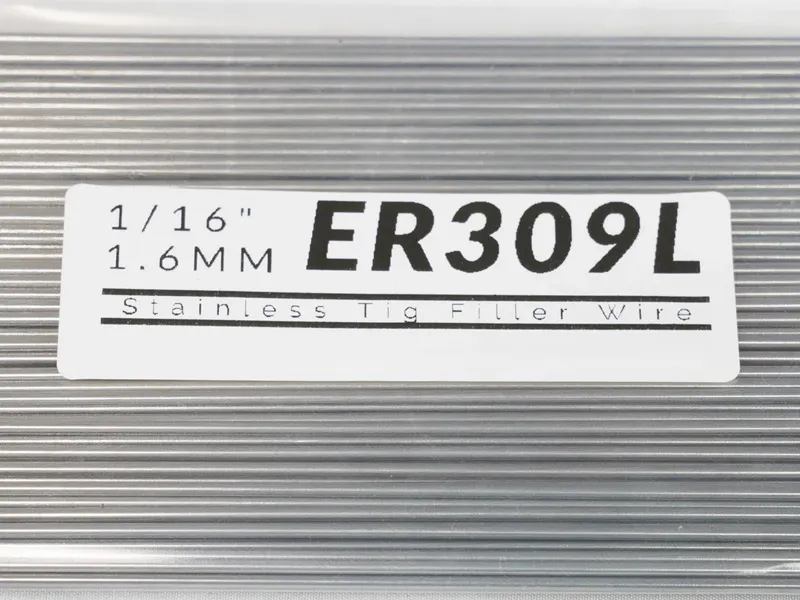

ER309L is a low-carbon austenitic stainless steel welding wire designed for welding 309 and 309L stainless steels. It is particularly effective in dissimilar metal welding, such as welding stainless steels to carbon steels or low alloy steels. The low carbon content reduces the risk of intergranular corrosion, making ER309L suitable for applications where corrosion resistance and mechanical strength are critical.
ER309L is widely used in the power generation, chemical processing, automotive, and food processing industries where welds are exposed to moderately corrosive environments.
ER309L
|
Standard |
Classification |
|
AWS A5.9 |
ER309L |
|
EN ISO 14343 |
G 19 9 L |
|
UNS |
S30908 |
Note: ER309L is intended for GMAW (MIG) and GTAW (TIG) processes. Equivalent covered electrode classification is E309L-16 (AWS A5.4).
|
Element |
C |
Mn |
Si |
Cr |
Ni |
P |
S |
Fe |
|
Content (%) |
≤0.03 |
1.0–2.5 |
≤0.75 |
22.0–25.0 |
12.0–14.0 |
≤0.03 |
≤0.03 |
Balance |
The manganese and silicon content contribute to the wire's ability to handle higher welding temperatures and its resistance to oxidation and corrosion in weld areas.
|
Property |
Value |
|
Tensile Strength |
≥550 MPa |
|
Yield Strength |
≥220 MPa |
|
Elongation |
≥30% |
|
Impact Toughness |
Good at room temperature |
These mechanical properties ensure ER309L can withstand moderate thermal cycles, making it suitable for dissimilar metal welding.
Low Carbon Austenitic Structure
Minimizes the formation of chromium carbides during welding, reducing the risk
of intergranular corrosion.
Ideal for Dissimilar Metal Welding
Designed for joining stainless steels to carbon steel or low alloy steels,
offering flexibility in a variety of applications.
Enhanced Weldability
Exhibits smooth arc performance, reducing spatter and ensuring stable metal
transfer during welding, especially in GMAW and GTAW processes.
High Chromium Content
Provides good resistance to oxidation and mild corrosion, especially in
environments with moderate levels of corrosive exposure.
Versatile for Multi-Purpose Applications
Suitable for food processing, automotive, and chemical processing industries.
|
Category |
Details |
|
Base Materials |
309, 309L stainless steel, Dissimilar welding (stainless steels to carbon steel) |
|
Industrial Applications |
Automotive exhaust systems, Pressure vessels, Chemical processing equipment, Food processing, Power generation piping |
|
Service Environment |
Mildly corrosive environments, Moderate temperatures, Moderate mechanical stresses |
|
Available Forms |
MIG Welding Wire (GMAW), TIG Filler Rod (GTAW), Covered Electrode–E309L-16 (SMAW) |
Contact our technical team for grade confirmation, detailed product datasheets, welding procedure guidance, or to request a project-specific quotation.
